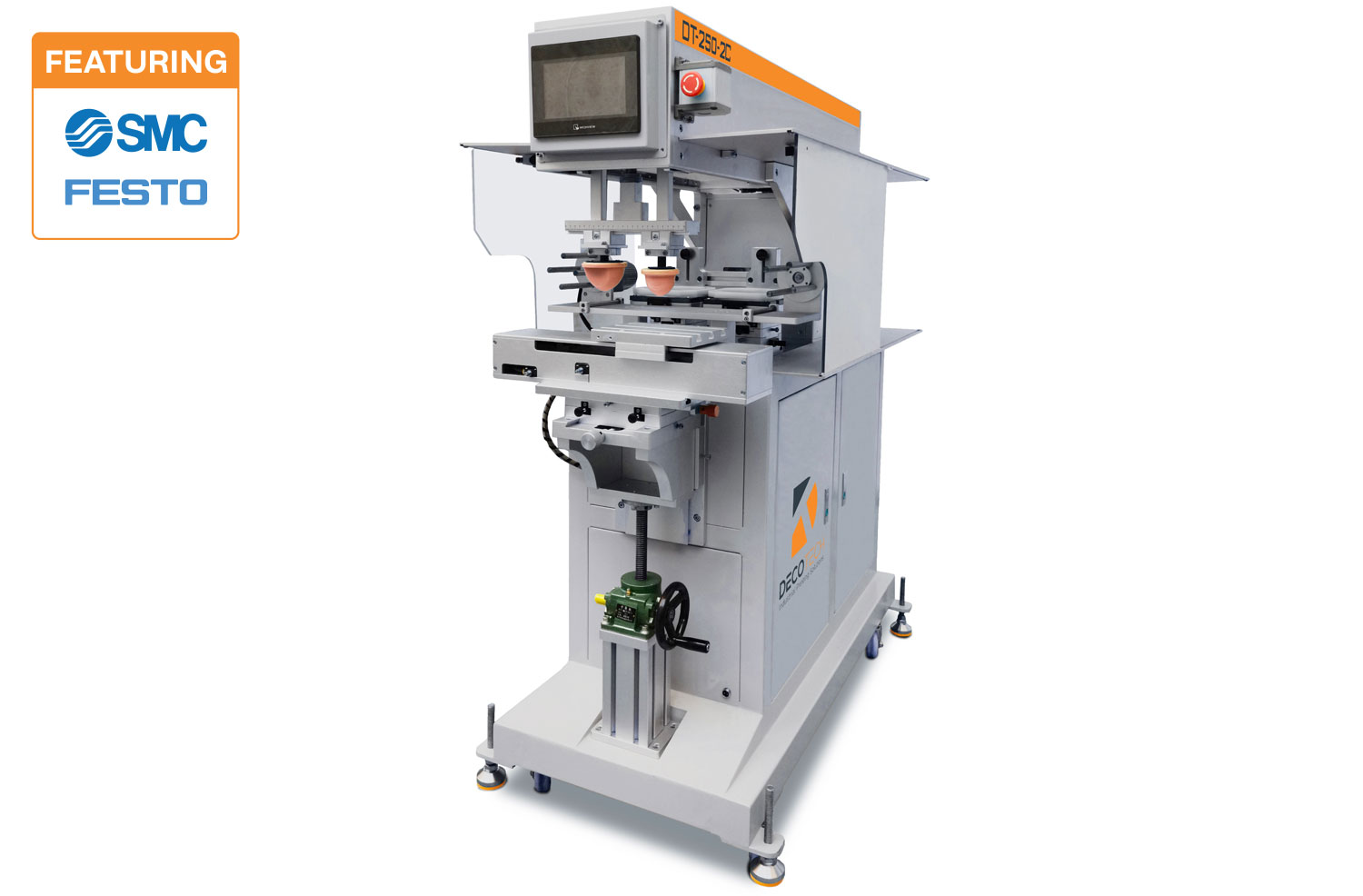

DT-250-2C Two Color Pad Printing Machine
Two color large image pad printing machine with 140mm ink cups.
Machine Type: Semi-Automatic Pad Printing Machine
Manufacturer: Deco Tech
Origin: Built in China with World-Class Components
The DT-250-2C pad printing machine is a large and economical one or two color pad printing system that is both user-friendly and quick to setup. It features a two position pneumatic driven part shuttle, and it features a membrane control panel with LCD display, and it is easy to make all adjustments from the control panel. You can also easily adjust the pad strokes on the right side of the machine for both the distance to the part and to the cliché. The DT-250-2C pad printer comes with a solid built welded steel machine base and it has adjustable floor levelers and a height adjustable worktable. This DT-250-2C is equipped with two 140mm ink cups and two X/Y/R adjustable cliché holders that are 150 x 300mm for precise alignment of two color artworks. The clichés can be photo polymer, thin steel or laser etched varieties and Deco Tech provides a full array of pad printing consumable supplies, technical support & product training for our DT SERIES of pad printing machinery. This Deco Tech pad printing machine is backed with a one year warranty against defects in manufacturing. Call the experts at (714) 639-DECO to find out more.
FEATURES
- PLC Controlled with Touch Screen
- Two Position Festo brand Part Shuttle (PS)
- Festo Pneumatic Cylinders and SMC Pneumatic Valves throughout
- Heavy-Duty Steel Machine Base with Storage Cabinet for Supplies
- Height Adjustable Worktable with X/Y and Skew Adjustment
- T-Slot Table for Quick Mounting of Tooling
- Print Stroke Lengths are Adjustable from the Touch Screen (pad to part and pad to plate)
- E-Stop Safety Circuit and OSHA Approved Safety Guarding
- Complies with CE Safety Standards
- Comes with Foot Switch as Standard
- Comes with Tool Set and Operators Manual
SPECIFICATIONS
| Technical Data | DT-250-2C |
|---|---|
| Printing Capacity: | up to 600 pph |
| Drive: | Mitsubishi PLC with touch screen |
| Printing Force: | 3927N |
| Air supply | 5 bar (87 psi) |
| Power connection: | 110V 60Hz |
| Control voltage: | 24 VDC |
| Weight: | 260 kg (573 lbs) |
| Plate size with ink cup: | 150 x 300mm (5.9" x 11.81") |
| Vertical Pad Stroke: | 100mm (3.93") |
| Horizontal Pad Stroke: | 250mm (9.84") |
| Plate Thickness: | 0.5 or 10mm |
| Ink cup sizes (ID): 140mm (5.51") |
Print sizes (diameter): 130mm (5.11") |
